Technical Specification

• Model No

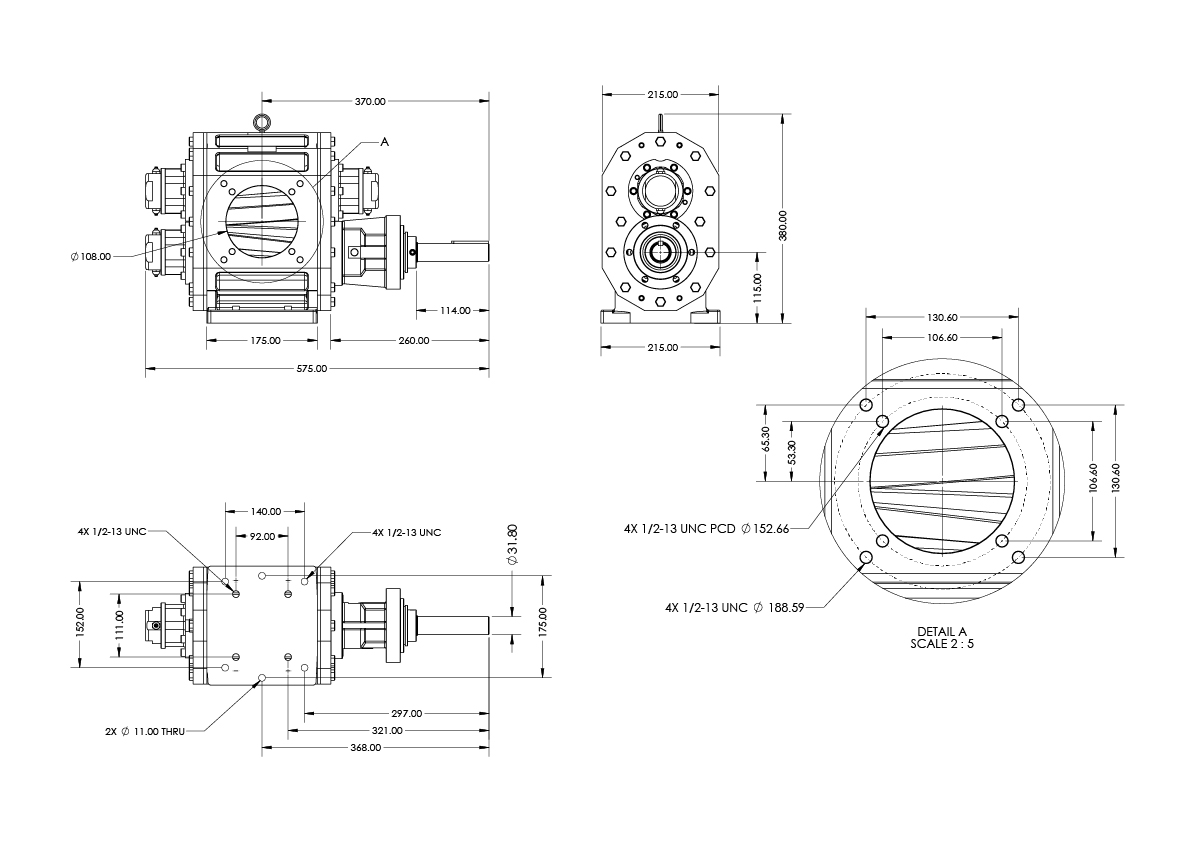

  MEHD 410

• Concept

  External Heavy duty gear pump.

• Port size

  4″ x 4″ Inlet & Outlet (flange type)

• Port configuration

  180̊ Degree

• Presssure

  150 PS/Max Recommended Pressure

• Direction

  Multi direction (clock wise & anticlock wise)

• Speed

  100 rpm to 700 rpm (May very as per the application and liquid viscosity)

• Maximun temp range

  50 C to 150 C

• Flow at different rpm
  • *200 RPM – 400-LPM
  • *400 RPM – 900-LPM
  • *700 RPM – 1750 LPM
